Monitoring Memory, CPU and swap on RHEL or CentOS 7

top : The top provides a dynamic real-time view of running processes, CPU, Memory and SWAP utilization on a system. It can display system summary information as well as a list of processes or threads currently being managed by the Linux kernel.

[root@localhost ~]# top


In case as a root you want to check it for some particular user then :

[root@localhost ~]# top -u hpe



pmap : This command report memory map of a process or processes.

[root@localhost ~]# pmap -d 22745



vmstat : This command reports information about processes, memory, paging, block IO, traps, disks and cpu activity.

[root@localhost ~]# vmstat -w

[root@localhost ~]# vmstat -as

[root@localhost ~]# vmstat -dw


[root@localhost ~]# vmstat -D

            5 disks
            2 partitions
        48470 total reads
          104 merged reads
      9879363 read sectors
      6320494 milli reading
        57453 writes
        39762 merged writes
     46514707 written sectors
     61995147 milli writing
            0 inprogress IO
         1162 milli spent IO


mpstat : The  mpstat  command  writes  to  standard output activities for each available processor, processor 0 being the first one.  Global average activities among all processors are also reported. The mpstat command can be used both on SMP and UP machines, but in the latter, only global average activities will be printed. If no activity has been selected, then the default report is the CPU utilization report.

[root@localhost ~]# mpstat -A



free : free displays the total amount of free and used physical and swap memory in the system, as well as the buffers and caches used by the kernel. The information is gathered by parsing /proc/meminfo.

[root@localhost ~]#  free -mlt




swapon : It displays name of the swap device along with total/used size and it's priority:


[root@localhost ~]# swapon --show
NAME      TYPE      SIZE  USED PRIO
/dev/dm-1 partition 3.9G 70.5M   -2


ps : This command gives you the list of running process on the system.

[root@localhost ~]# ps -eaf
UID         PID   PPID  C STIME TTY          TIME CMD
root          1      0  0 13:14 ?        00:00:08 /usr/lib/systemd/systemd --switched-root --system --deserialize 22
root          2      0  0 13:14 ?        00:00:00 [kthreadd]
root          3      2  0 13:14 ?        00:00:11 [ksoftirqd/0]
root          5      2  0 13:14 ?        00:00:00 [kworker/0:0H]
root          7      2  0 13:14 ?        00:00:07 [migration/0]
root          8      2  0 13:14 ?        00:00:00 [rcu_bh]
root          9      2  0 13:14 ?        00:00:08 [rcu_sched]
root         10      2  0 13:14 ?        00:00:00 [lru-add-drain]
root         11      2  0 13:14 ?        00:00:03 [watchdog/0]
root         12      2  0 13:14 ?        00:00:03 [watchdog/1]
root         13      2  0 13:14 ?        00:00:14 [migration/1]
root         14      2  0 13:14 ?        00:00:09 [ksoftirqd/1]
root         16      2  0 13:14 ?        00:00:00 [kworker/1:0H]
root         17      2  0 13:14 ?        00:00:04 [watchdog/2]
root         18      2  0 13:14 ?        00:00:19 [migration/2]
root         19      2  0 13:14 ?        00:00:03 [ksoftirqd/2]
root         20      2  0 13:14 ?        00:00:08 [kworker/2:0]
root         21      2  0 13:14 ?        00:00:00 [kworker/2:0H]
root         22      2  0 13:14 ?        00:00:06 [watchdog/3]
root         23      2  0 13:14 ?        00:00:24 [migration/3]
root         24      2  0 13:14 ?        00:00:27 [ksoftirqd/3]
root         26      2  0 13:14 ?        00:00:00 [kworker/3:0H]


Use of "--forest" switch in the ps command displays parent and chile process tree.

[root@localhost ~]#  ps -e -o pid,args --forest

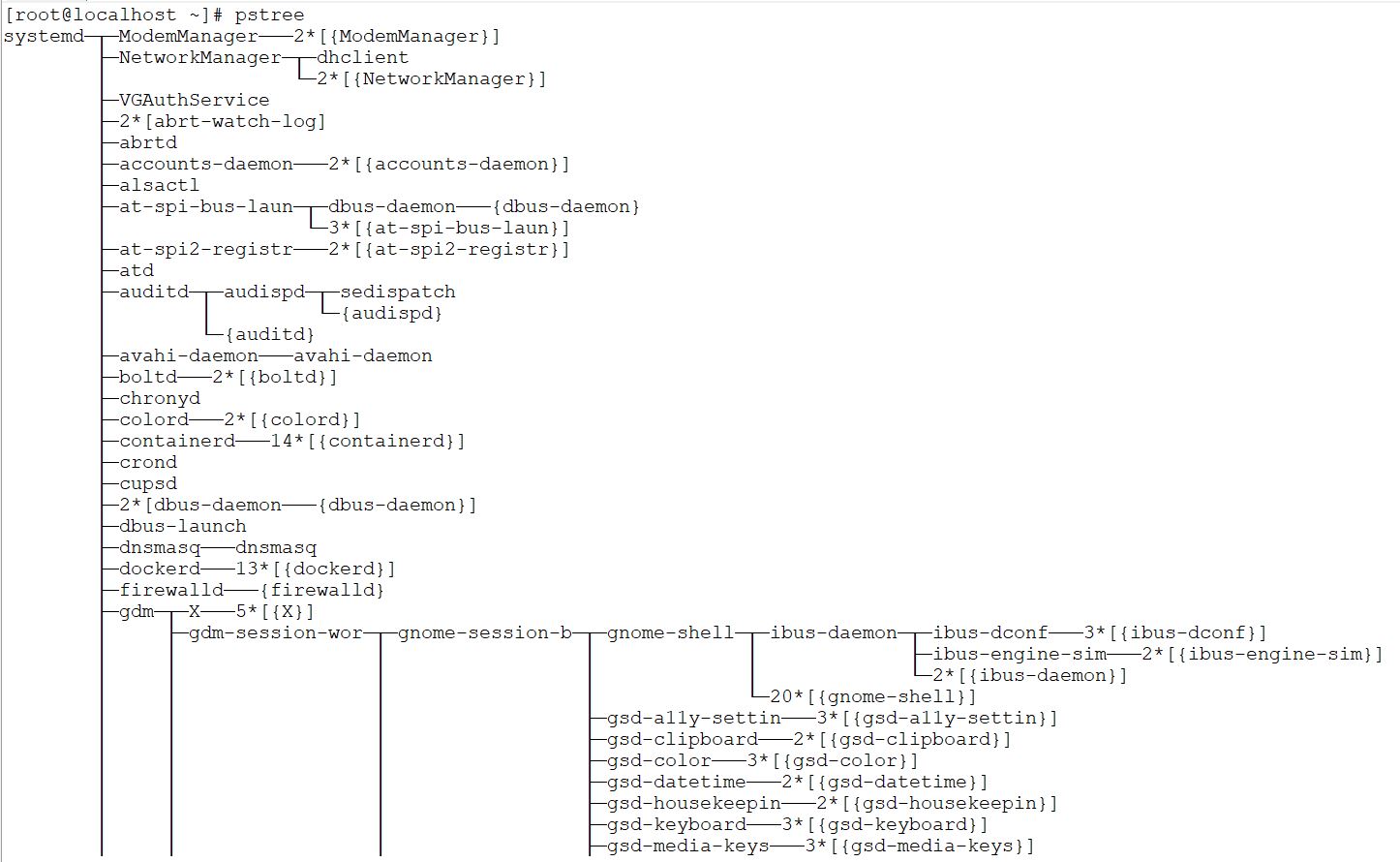

pstree : It shows running processes as a tree. The tree is rooted at either pid or init if pid is omitted. If a user name is specified, all process trees rooted at processes owned by that user are shown.


[root@localhost ~]# pstree



[root@localhost ~]# pstree -u hpe
bash───vim

bash───vim



lsof : This displays the lists of files currently opened on your system.

[root@localhost ~]# lsof | more



If you want to check list of opened files for some user:

[root@localhost ~]# lsof -u hpe



strace : Strace is used for debugging and troubleshooting the execution of an executable. It displays the system calls used by the process, and the signals received by the process. It also provides execution of a binary from start to end.

[root@localhost ~]# strace ls
execve("/usr/bin/ls", ["ls"], [/* 31 vars */]) = 0
brk(NULL)                               = 0x1b95000
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7fe9a053f000
access("/etc/ld.so.preload", R_OK)      = -1 ENOENT (No such file or directory)
open("/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
fstat(3, {st_mode=S_IFREG|0644, st_size=122100, ...}) = 0
mmap(NULL, 122100, PROT_READ, MAP_PRIVATE, 3, 0) = 0x7fe9a0521000
close(3)                                = 0
open("/lib64/libselinux.so.1", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0>\0\1\0\0\0\320i\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=155784, ...}) = 0
mmap(NULL, 2255184, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fe9a00f8000
mprotect(0x7fe9a011c000, 2093056, PROT_NONE) = 0
mmap(0x7fe9a031b000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x23000) = 0x7fe9a031b000
mmap(0x7fe9a031d000, 6480, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_ANONYMOUS, -1, 0) = 0x7fe9a031d000
close(3)                                = 0
open("/lib64/libcap.so.2", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0>\0\1\0\0\0 \26\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=20032, ...}) = 0
.
.
.
